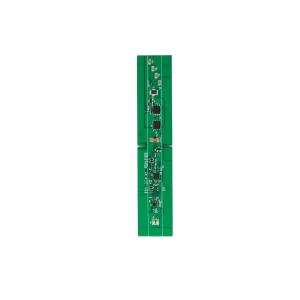

4S 6A Protection Circuit Board with SMBUS Interface Suitable for Lithium Batteries
Technical Specification
| Model NO. | BAKTH-004S006A-0084-01 |
| Compliant certification standards | IEC62133 |
| Type of Protective Board | 4S lithium battery protection board |
| Compatible Interface | SMBUS |
| Electrical Performance | |
| Battery Type | Li-ion |
| Over charge detection voltage(Cell) | 4.250V±0.025V |
| Over Discharge Detection Voltage(Cell) | 2.400V±0.025V |
| Over Current Discharge | 13.5A±0.2A |
| Over Current Charge | 5.5A±0.2A |
| Max Discharge Current | 10A |
| Dimension | 130*25*2.2 mm(L*W*H) |
Key Features:
Applications: Lithium ion Battery Pack, Electric Tools;
