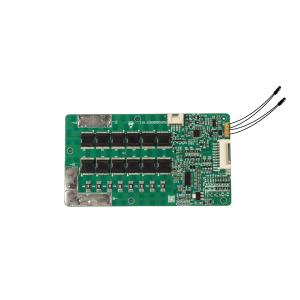

This 8S Li-Ion battery protection board is designed for high-performance energy storage systems, featuring adjustable protection parameters, robust safety mechanisms, and compliance with IEC62133 standards. With a continuous discharge current of 60A and configurable overcharge/over-discharge detection, it ensures reliable operation across various applications. Its compact dimensions (125×70×6.88 mm) make it suitable for space-constrained installations.
Specifications
| Compatibleinterface | I2C | Continuous Discharge Current | 60A |
| Over charge detection voltage(Cell) |
3.65V±0.050V Adjustable |
Dimensions |
Length 125 mm Width 70 mm Height 6.88 mm |
| Over Discharge Detection Voltage(Cell) |
2.50V±0.05V Adjustable |
Compliant certification standards | IEC62133 |
| Over Current Discharge |
85.0A±5.0A Adjustable |
Type of Protective Board | 8S Li-ION battery protection board |
|
Over Current Charge
|
60.0A±5.0A Adjustable |
Protection | OV, UV, OC, SC, OT, Balance |
| Discharging Temperature |
-16~72℃ Adjustable |
|
-1~65℃ Adjustable |
Key Features
Multi-Protection Mechanisms
Overcharge Protection (OV): Cell detection voltage 3.65V±0.050V (adjustable).
Over-Discharge Protection (UV): Cutoff voltage 2.50V±0.05V (adjustable).
Overcurrent Protection (OC): Discharge 85.0A±5.0A, Charge 60.0A±5.0A (both adjustable).
Short-Circuit Protection (SC) + Temperature Protection (OT): Operating range Charge: -1~65℃ / Discharge: -16~72℃.
Cell Balancing for uniform voltage distribution.
Compatibility & Communication
Supports I2C interface for system integration and monitoring.
Application Scenarios
E-mobility: E-bikes, scooters.
Advantage
High Flexibility: Adjustable voltage/current/temperature thresholds.
Enhanced Safety: Complies with IEC62133, multi-layer protection.
Compact Design: Slim profile (6.88mm) for embedded use.
